2099FV Datasheet - Rohm

2099FV, BU2099FV

Serial-in / Parallel-out Driver Series Serial / Parallel 4-input Drivers BU2050F,BU2092F,BU2092FV,BU2099FV,BD7851FP,BU2152FS No.09051EAT03 *Desc.
Serial-in-parallel-out driver incorporates a built-in shift register and a latch circuit to control a maximum of 24 LED by a 4-line interface, linked.

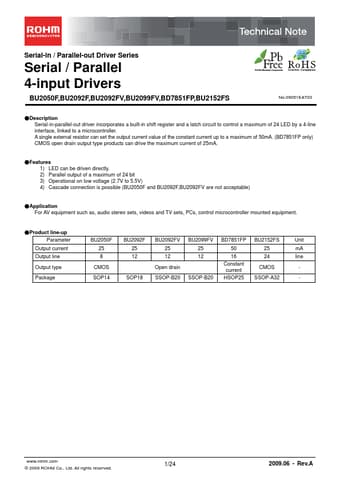

datasheet Preview Page 1 from Datasheet4u.com

2099FV_Rohm.pdf

2099FV Datasheet Preview — Preview of 2099FV PDF

Datasheet Details

Part number:

2099FV

Manufacturer:

ROHM ↗

File Size:

376.33 KB

Description:

BU2099FV

Features

* 1) LED can be driven directly. 2) Parallel output of a maximum of 24 bit 3) Operational on low voltage (2.7V to 5.5V) 4) Cascade connection is possible (BU2050F and BU2092F,BU2092FV are not acceptable)
