LC2421-LY Datasheet - Laurel

LC2421-LY LCD

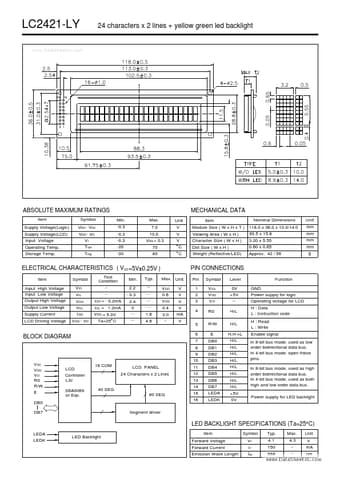

LC2421-LY www.DataSheet4U.com 24 characters x 2 lines + yellow green led backlight ABSOLUTE MAXIMUM RATINGS Item Supply Voltage(Logic) Supply Voltage(LCD) Input Voltage Operating Temp. Storage Temp. Symbol VDD - VSS VDD - VO VI Topr Tstg Min. -0.3 -0.3 -0.3 -20 -30 Max. 7.0 13.0 VDD + 0.3 70 80 Unit V V V °C °C MECHANICAL DATA Item Module Size ( W x H x T ) Viewing Area ( W x H ) Character Size ( W x H ) Dot Size ( W x H ) Weight (Reflective/LED) Nominal Dimensions 118.0 x 36.0 x 10.0/14.0 93.

LC2421-LY_Laurel.pdf

LC2421-LY Datasheet Preview — Preview of LC2421-LY PDF

Datasheet Details

Part number:

LC2421-LY

Manufacturer:

Laurel

File Size:

61.73 KB

Description:

Lcd.
