LC2421 Datasheet - ETC

LC2421 LCD

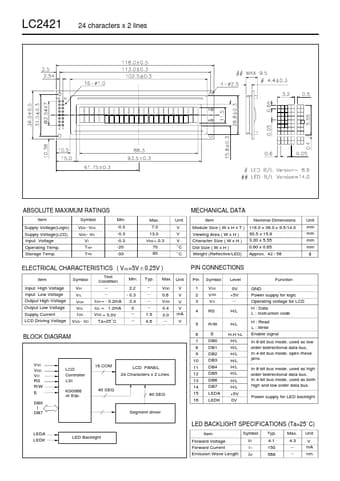

www.DataSheet4U.com LC2421 24 characters x 2 lines ABSOLUTE MAXIMUM RATINGS Item Supply Voltage(Logic) Supply Voltage(LCD) Input Voltage Operating Temp. Storage Temp. Symbol VDD - VSS VDD - VO VI Topr Tstg Min. -0.3 -0.3 -0.3 -20 -30 Max. 7.0 13.0 VDD + 0.3 70 80 Unit V V V C MECHANICAL DATA Item Module Size ( W x H x T ) Viewing Area ( W x H ) Character Size ( W x H ) Dot Size ( W x H ) Weight (Reflective/LED) Nominal Dimensions 118.0 x 36.0 x 9.5/14.0 93.5 x 15.8 3.20 x 5.55 0.60 x 0.65 Ap.

LC2421 Datasheet (63.95 KB)

LC2421 Datasheet Preview — Preview of LC2421 PDF

Datasheet Details

Part number:

LC2421

Manufacturer:

ETC

File Size:

63.95 KB

Description:

Lcd.
