LC2421-SMLYH6 - LCD Module

Product Overview

Part number	LC2421-SMLYH6
Manufacturer	ETC
File Size	374.17 KB
Description	LCD Module
Datasheet	LC2421-SMLYH6 Datasheet

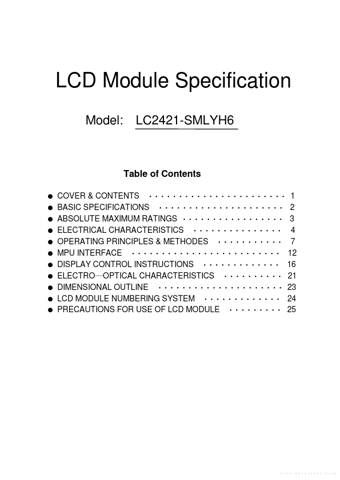

Additional preview pages of the LC2421-SMLYH6 datasheet.

Display Format LCD Mode : 24 Characters X 2 Lines : STN－Yellow Green－Positive－Transmissive 1/16 Duty, 1/4 Bias 6:00 LED, yellow green color 118.0(W) X 36.0(H) X 14.0(T) 93.5(W) X 15.8(H) 3.20 X 5.55 0.60 X 0.65 56 S6A0069 (KS066U) Driving Method : Viewing Direction : Backlight : Outline Dimension : Viewing Area : Character Size : Dot Size : Weight : Controller : mm mm mm mm g 1.2 Block Diagram VSS VDD VO RS R/W E DB0 DB7 LCD Controller LSI KS0066 or Eqv. 16 COM LCD PANEL 24 Characters x 2.
