LC3300, Variable Frequency Step-up DC/DC Converter

LC3300 - Max.3MHz, Variable Frequency Step-up DC/DC Converter .
The LC3300 variable frequency step-up Converter drives white LEDs with a constant current to provide backlight in cell phones, PDAs, and other hand-he.

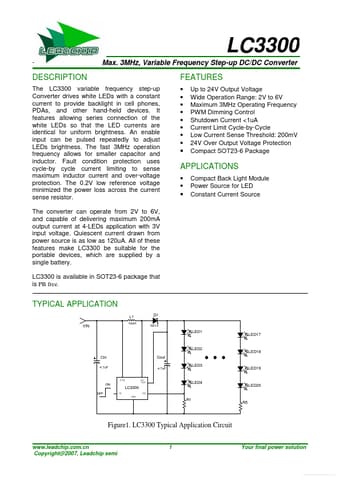

datasheet Preview Page 1 from Datasheet4u.com

LC3300_Leadchipsemi.pdf

LC3300 Datasheet Preview — Preview of LC3300 PDF

Datasheet Details

Part number:

LC3300

Manufacturer:

Leadchip semi

File Size:

148.53 KB

Description:

Variable Frequency Step-up DC/DC Converter

Features

* allowing series connection of the white LEDs so that the LED currents are identical for uniform brightness. An enable input can be pulsed repeatedly to adjust LEDs brightness. The fast 3MHz operation frequency allows for smaller capacitor and inductor. Fault condition protection uses cycle-by cycle

Applications

* Compact Back Light Module Power Source for LED Constant Current Source TYPICAL APPLICATION L1 VIN 10uH D1 SS14 LED1 LED17 LED2 Cin 4.7uF LED18 Cout 4.7uF LED3 LED19 VIN ON OFF CE LX OVP LED4 LC3300 FB GND LED20 R1 R5 Figure1. LC3300 Typical Applicati
