LC3304P8 4-Line 3.3V ESD Protection Diode Array

LC3304P8 Description

.

LC3304P8 Features

* Ultra low leakage: nA level
* Ultra low operating voltage: 3.3V
* Ultra low clamping voltage
* Complies with following standards:
* IEC 61000-4-2 (ESD) immunity test Air discharge: ±25kV Contact discharge: ±15kV
* IEC61000-4-4 (EFT) 40A (5/50ns)

LC3304P8 Applications

* Analog Video
* RJ-45 Connectors
* T1/E1 Secondary Protection
* T3/E3 Secondary Protection
* 10/100/1000 Ethernet LC3304P8 4-Line 3.3V ESD Protection Diode Array Dimensions DFN2626-10 2.60 1 23 45 2.60 10 9 8 7 6 0.50 BSC 0.55 Pin Configuration Pin 5 Pin

📥 Download Datasheet

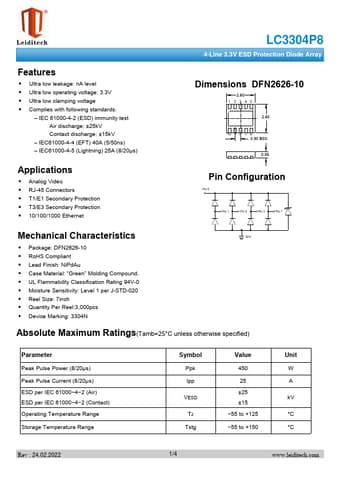

Preview of LC3304P8 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LC3304P8
Manufacturer
Leiditech
File Size
488.71 KB
Datasheet
LC3304P8-Leiditech.pdf
Description
4-Line 3.3V ESD Protection Diode Array
