LC3304EP8 LOW CAPACITANCE TVS DIODE ARRAY

LC3304EP8 Description

.

LC3304EP8 Features

* Ultra low leakage: nA level
* Operating voltage: 3.3V
* Low clamping voltage
* Complies with following standards:
* IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
* IEC61000-4-4 (EFT) 40A (5/50ns)
* IEC61000-4-5 (Lightning) 2

LC3304EP8 Applications

* USB 2.0 power and data line
* Set-top box and digital TV
* Digital video interface (DVI)
* Notebook Computers
* SIM Ports
* 10/100 Ethernet Mechanical Characteristics
* Package: SOP-08
* Lead Finish: Lead Free
* UL Flammability Classification Rating 94V-0

📥 Download Datasheet

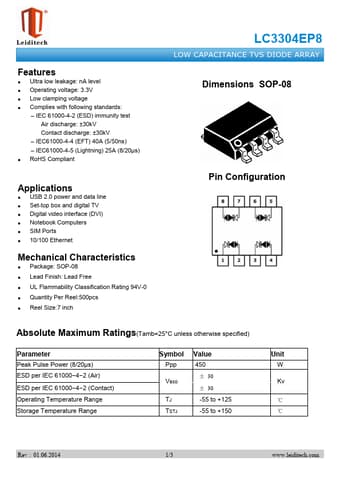

Preview of LC3304EP8 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LC3304EP8
Manufacturer
Leiditech
File Size
229.00 KB
Datasheet
LC3304EP8-Leiditech.pdf
Description
LOW CAPACITANCE TVS DIODE ARRAY
