LD8116A

Flexible Dimming Solution by PWM / 0-10V / Potentiometer

LD8116A Features

* include wide input voltage from 13V to 58V, adjustable bias current source for potentiometer and high precision LED dimming current. The LD8116A is the SOT-26 package to minimize the PCB size as well as component counts. Features

* Wide VCC operating range

* Low operation current

* Prec

LD8116A General Description

The LD8116A contains a processor which can convert the three different inputs of dimmer type include 0~10V DC potential, 0~100% duty cycle PWM (Plus Width Modulation) signal and potentiometer become a PWM signal output. It is easy to provide the isolation dimming control that via opto-coupler for sm.

LD8116A Datasheet (811.53 KB)

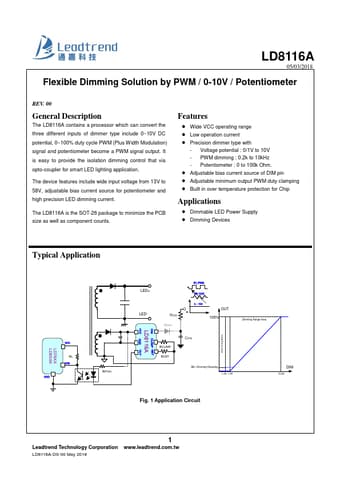

Preview of LD8116A PDF

Datasheet Details

Part number:

LD8116A

Manufacturer:

Leadtrend

File Size:

811.53 KB

Description:

Flexible dimming solution by pwm / 0-10v / potentiometer.
