LD8116Q Datasheet - Leadtrend

Flexible Dimming Solution by PWM / 0-10V / Potentiometer

LD8116Q Features

* include wide input voltage from 15V to 56V, adjustable bias current source for potentiometer and high precision LED dimming current. The LD8116Q is the SOT-26 package to minimize the PCB size as well as component counts. Typical Application Features

* Wide VCC operating range

* Low operatio

LD8116Q General Description

The LD8116Q contains a processor which can convert the three different inputs of dimmer type include DC potential, PWM (Plus Width Modulation) signal and potentiometer become a PWM signal output. It is easy to provide the isolation dimming control that via opto-coupler for smart LED lighting applica.

LD8116Q Datasheet (458.01 KB)

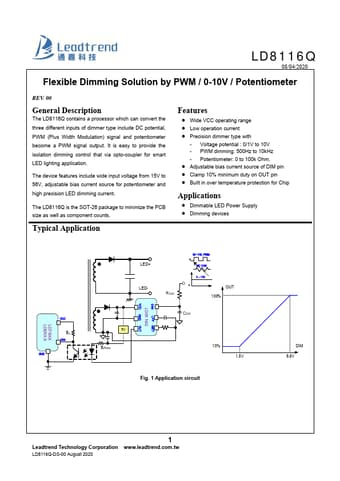

LD8116Q Datasheet Preview — Preview of LD8116Q PDF

Datasheet Details

Part number:

LD8116Q

Manufacturer:

Leadtrend

File Size:

458.01 KB

Description:

Flexible dimming solution by pwm / 0-10v / potentiometer.
