LD8116C

Flexible Dimming Solution by PWM / 0-10V / Potentiometer

LD8116C Features

* include wide input voltage from 13V to 58V, adjustable bias current source for potentiometer and high precision LED dimming current. Features

* Wide VCC operating range

* Low operation current

* Precision dimmer type with - Voltage potential : 0/1V to 10V - PWM dimming : 0.2k to 10kHz -

LD8116C General Description

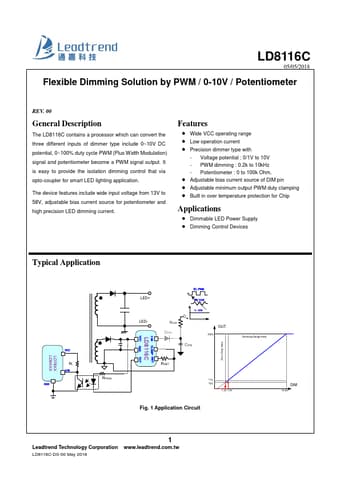

The LD8116C contains a processor which can convert the three different inputs of dimmer type include 0~10V DC potential, 0~100% duty cycle PWM (Plus Width Modulation) signal and potentiometer become a PWM signal output. It is easy to provide the isolation dimming control that via opto-coupler for sm.

LD8116C Datasheet (665.78 KB)

Preview of LD8116C PDF

Datasheet Details

Part number:

LD8116C

Manufacturer:

Leadtrend

File Size:

665.78 KB

Description:

Flexible dimming solution by pwm / 0-10v / potentiometer.
