LBAT54C Datasheet - Leshan Radio Company

LBAT54C Dual Series Schottky Barrier Diodes

LESHAN RADIO COMPANY, LTD. Dual Series Schottky Barrier Diodes These Schottky barrier diodes are designed for high speed switching applications, circuit protection, and voltage clamping. Extremely low forward voltage reduces conduction loss. Miniature surface mount package is excellent for hand held and portable applications where space is limited. Extremely Fast Switching Speed Low Forward Voltage 0.35 Volts (Typ) @ I F = 10 mAdc ANODE 1 3 LBAT54CLT1 3 1 2 SOT-.

LBAT54C_LeshanRadioCompany.pdf

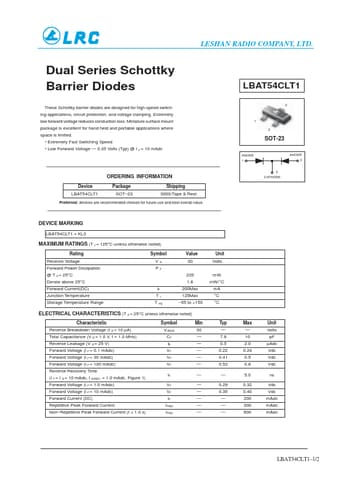

Preview of LBAT54C PDF
LBAT54C Datasheet Preview Page 2 LBAT54C Datasheet Preview Page 3

Datasheet Details

Part number:

LBAT54C

Manufacturer:

Leshan Radio Company

File Size:

105.78 KB

Description:

Dual series schottky barrier diodes.
