LBAT54SDW1T1G Datasheet - Leshan Radio Company

LBAT54SDW1T1G SURFACE MOUNT SCHOTTKY BARRIER DIODE ARRAY

LESHAN RADIO COMPANY, LTD. SURFACE MOUNT SCHOTTKY BARRIER DIODE ARRAY LBAT54SDW1T1G These Schottky barrier diodes are designed for high speed switching applications, circuit protection, and voltage clamping. Extremely low forward voltage reduces conduction loss. Miniature surface mount package is excellent for hand held and portable applications where space is limited. Extremely Fast Switching Speed Low Forward Voltage 0.35 Volts (Typ) @ IF = 10 mAdc We.

LBAT54SDW1T1G-LeshanRadioCompany.pdf

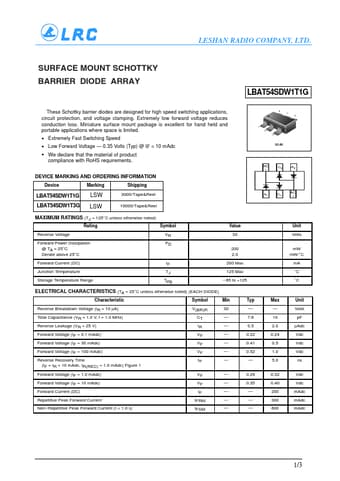

Preview of LBAT54SDW1T1G PDF
LBAT54SDW1T1G Datasheet Preview Page 2 LBAT54SDW1T1G Datasheet Preview Page 3

Datasheet Details

Part number:

LBAT54SDW1T1G

Manufacturer:

Leshan Radio Company

File Size:

67.20 KB

Description:

Surface mount schottky barrier diode array.
