LBC848CPDW1T1 - (LBC84xxPDW1T1) Dual General Purpose Transistors NPN/PNP Duals

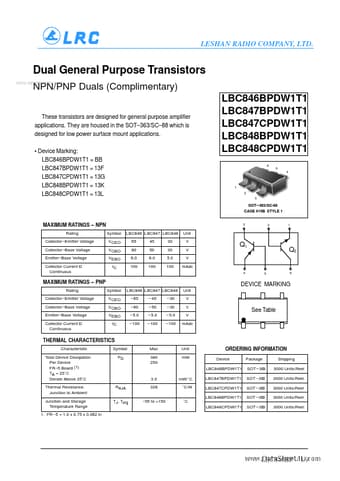

LESHAN RADIO COMPANY, LTD. Dual General Purpose Transistors www.datasheet4u.com NPN/PNP Duals (Complimentary) These transistors are designed for general purpose amplifier applications. They are housed in the SOT 363/SC 88 which is designed for low power surface mount applications. Device Marking: LBC846BPDW1T1 = BB LBC847BPDW1T1 = 13F LBC847CPDW1T1 = 13G LBC848BPDW1T1 = 13K LBC848CPDW1T1 = 13L LBC846BPDW1T1 LBC847BPDW1T1 LBC847CPDW1T1 LBC848BPDW1T1 LBC848CPDW1T1 6 5 .

LBC848CPDW1T1 Features

* (mV/ °C) -55°C to +125°C 1.2 1.6 2.0 2.4 2.8 0.02 0.1 1.0 IB, BASE CURRENT (mA) 10 20 0.2 10 1.0 IC, COLLECTOR CURRENT (mA) 100 Figure 15. Collector Saturation Region Figure 16. Base

* Emitter Temperature Coefficient fă, T CURRENT-GAIN - BANDWIDTH PRODUCT (MHz) 400 300 200 VCE = 10 V
