LM1MA141WAT1G Datasheet - Leshan Radio Company

Common Anode Silicon Dual Switching Diode

S-LM1MA142WAT3G LESHAN RADIO COMPANY, LTD. Common Anode Silicon Dual Switching Diode This Common Anode Silicon Epitaxial Planar Dual Diode is designed for use in ultra high speed switching applications. This device is housed in the SC 70 package which is designed for low power surface mount applications. z Fast trr, < 10 ns z Low CD, < 15 pF z We declare that the material of product compliance with RoHS requirements. z S- Prefix for Automotive and Other Applications R.

LM1MA141WAT1G Datasheet (67.90 KB)

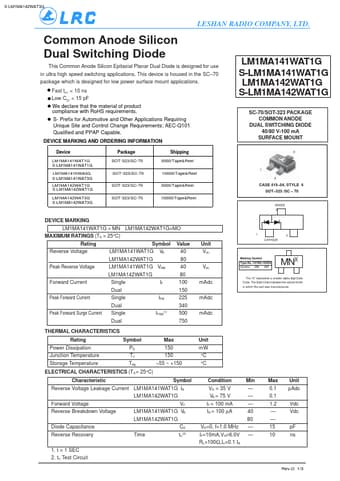

Preview of LM1MA141WAT1G PDF

Datasheet Details

Part number:

LM1MA141WAT1G

Manufacturer:

Leshan Radio Company

File Size:

67.90 KB

Description:

Common anode silicon dual switching diode.
