LM10010 - VID Voltage Programmer

Datasheet Summary

Description

The LM10010 is a precision, digitally programmed device used to control the output voltage of a DC/DC converter.

The LM10010 outputs a DC current inversely proportional to a 6-bit input word.

Features

  • 1.
  • 2 Output Current Accuracy (-40°C to +125°C).
  • Input Voltage Range: 3V to 5.5V.
  • 6-Bit Current DAC That Connects Directly to the Feedback Node of an External Regulator to Provide Output Voltage Control.
  • Precision Enable to Support Custom UVLO.
  • WSON-10 3 mm x 3 mm Footprint, 0.5 mm Pitch.
  • Compatible With the TMS320C66XX DSP Smart Reflex Technology.

📥 Download Datasheet

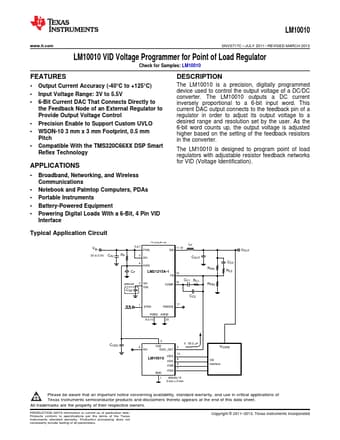

Datasheet preview – LM10010

Datasheet Details

Part number LM10010
Manufacturer Texas Instruments
File Size 412.00 KB
Description VID Voltage Programmer
Datasheet download datasheet LM10010 Datasheet
