LM1036

Dual DC Operated Tone/Volume/Balance Circuit

Texas Instruments

LM1036 Features

* 1

* 2 Wide Supply Voltage Range, 9V to 16V

* Large Volume Control Range, 75 dB Typical

* Tone Control, ±15 dB Typical

* Channel Separation, 75 dB Typical

* Low Distortion, 0.06% Typical for An Input Level of 0.3 Vrms

* High Signal to Noise, 80 dB Typica

LM1036 General Description

The LM1036 is a DC controlled tone (bass/treble), volume and balance circuit for stereo applications in car radio, TV and audio systems. An additional control input allows loudness compensation to be simply effected. Four control inputs provide control of the bass, treble, balance and volume functio.

LM1036 Datasheet (1.49 MB)

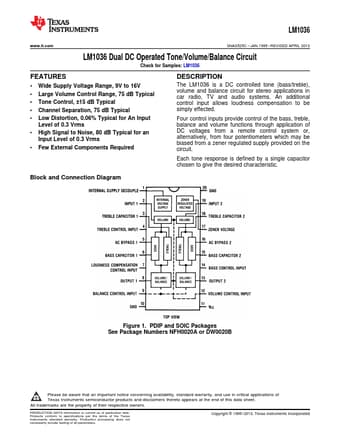

LM1036 Datasheet Preview — Preview of LM1036 PDF

Datasheet Details

Part number:

LM1036

Manufacturer:

Texas Instruments ↗

File Size:

1.49 MB

Description:

Dual dc operated tone/volume/balance circuit.
LM1036 www.ti.com SNAS525C

* JAN 1995

* REVISED APRIL 2013 LM1036 Dual DC Operated Tone/Volume/Balance Circuit Check for Samples: L.
