LM101A-N - Operational Amplifiers

Datasheet Summary

Description

The LM101A series are general purpose operational amplifiers which feature improved performance over industry standards like the LM709.

Features

  • 1.
  • Improved Specifications include:.
  • Offset Voltage 3 mV Maximum Over Temperature (LM101A/LM201A).
  • Input Current 100 nA Maximum Over Temperature (LM101A/LM201A).
  • Offset Current 20 nA Maximum Over Temperature (LM101A/LM201A).
  • Specified Drift Characteristics.
  • Offsets Specified Over Entire Common Mode and Supply Voltage Ranges.
  • Slew Rate of 10V/μs as a Summing Amplifier.

📥 Download Datasheet

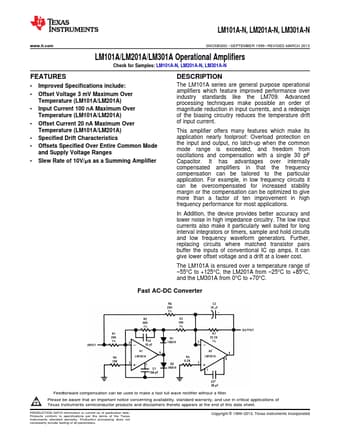

Datasheet preview – LM101A-N

Datasheet Details

Part number LM101A-N
Manufacturer Texas Instruments
File Size 1.00 MB
Description Operational Amplifiers
Datasheet download datasheet LM101A-N Datasheet
Additional preview pages of the LM101A-N datasheet.

📁 Similar Datasheet

  • LM101A - Operational Amplifiers (National Semiconductor)
  • LM101A - Operational Amplifiers (Linear Technology)
  • LM101A - SINGLE OPERATIONAL AMPLIFIER (STMicroelectronics)
  • LM101A - Middle Power LED (Samsung)
  • LM101A - General Purpose Operational Amplifier (Fairchild Semiconductor)
  • LM1017 - 4-Bit Binary 7-Segment Decoder/Driver (National Semiconductor)
  • LM10 - Operational Amplifier/Voltage (National Semiconductor)
  • LM10 - Low Power Op Amp (Linear Technology)
  • LM100 - Voltage Regulator (Intersil)
  • LM100 - Voltage Regulator (National Semiconductor)
Other Datasheets by Texas Instruments
  • LM101AJAN - Operational Amplifiers
  • LM101AQML - Operational Amplifiers
  • LM10 - Operational Amplifier and Voltage Reference
  • LM10000 - AVS System Controller
  • LM10010 - VID Voltage Programmer
  • LM10011 - 6/4-Bit VID Programmable Current DAC
  • LM1036 - Dual DC Operated Tone/Volume/Balance Circuit
  • LM10500 - 5A Step-Down EMU

Full PDF Text Transcription

Click to expand full text
LM101A-N, LM201A-N, LM301A-N www.ti.com SNOSBS0D – SEPTEMBER 1999 – REVISED MARCH 2013 LM101A/LM201A/LM301A Operational Amplifiers Check for Samples: LM101A-N, LM201A-N, LM301A-N FEATURES 1 • Improved Specifications include: • Offset Voltage 3 mV Maximum Over Temperature (LM101A/LM201A) • Input Current 100 nA Maximum Over Temperature (LM101A/LM201A) • Offset Current 20 nA Maximum Over Temperature (LM101A/LM201A) • Specified Drift Characteristics • Offsets Specified Over Entire Common Mode and Supply Voltage Ranges • Slew Rate of 10V/μs as a Summing Amplifier DESCRIPTION The LM101A series are general purpose operational amplifiers which feature improved performance over industry standards like the LM709.
