LM100SS1T522 Datasheet - Sharp

LM100SS1T522 - LCD Module

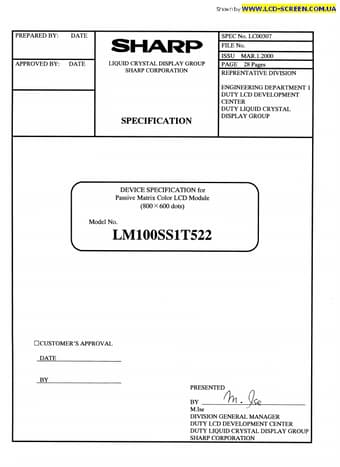

SPEC No.

LC00307 MODEL No.

LM100SS1T522 PAGE 1 Precautions 1) Industrial(Mechanical) design of the product in which this LCD module will be incorporated must be made so that the viewing angle characteristics of the LCD may be optimized.

This module’s viewing angle is illustrated in Fig.1.

 y MIN.

< viewing angle < y MAX.

 (For the specific values of y MIN., and y MAX., refer to the table ) Please consider the optimum viewing conditions according to the purpose when installing the mo
