LM10011 - 6/4-Bit VID Programmable Current DAC

Datasheet Summary

Description

The LM10011 is a precision, digitally programmable device used to control the output voltage of a DC/DC converter.

The LM10011 outputs a dc current proportional to a 6-bit or 4-bit input word.

Features

  • 1 1.0% Output Current Accuracy (0°C to 100°C).
  • 1.25% Output Current Accuracy (.
  • 40°C to 125°C).
  • Input Voltage Range: 2.97 V to 5.5 V.
  • Pin Selectable VID Format (6- or 4-bit).
  • 16 Selectable Start-Up Currents.
  • Precision Enable to Support Custom UVLO.
  • SON-10 3-mm × 3-mm Footprint, 0.5-mm Pitch.
  • Footprint Compatible with the LM10010 2.

📥 Download Datasheet

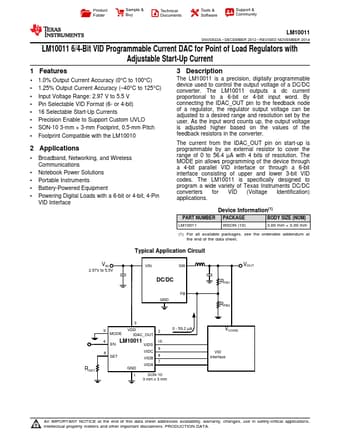

Datasheet preview – LM10011

Datasheet Details

Part number LM10011
Manufacturer Texas Instruments
File Size 576.64 KB
Description 6/4-Bit VID Programmable Current DAC
Datasheet download datasheet LM10011 Datasheet
Additional preview pages of the LM10011 datasheet.

📁 Similar Datasheet

  • LM1001-7R - 50 Watt AC-DC Converters (Power-One)
  • LM1001-7R - 50 Watt DC-DC Converters (Power-One)
  • LM100 - Voltage Regulator (Intersil)
  • LM100 - Voltage Regulator (National Semiconductor)
  • LM100SS1T522 - LCD Module (Sharp)
  • LM100SS1T523 - LCD Module (Sharp)
  • LM10 - Operational Amplifier/Voltage (National Semiconductor)
  • LM10 - Low Power Op Amp (Linear Technology)
  • LM1017 - 4-Bit Binary 7-Segment Decoder/Driver (National Semiconductor)
  • LM101A - Operational Amplifiers (National Semiconductor)
Other Datasheets by Texas Instruments
  • LM10010 - VID Voltage Programmer
  • LM10000 - AVS System Controller
  • LM10 - Operational Amplifier and Voltage Reference
  • LM101A-N - Operational Amplifiers
  • LM101AJAN - Operational Amplifiers
  • LM101AQML - Operational Amplifiers
  • LM1036 - Dual DC Operated Tone/Volume/Balance Circuit
  • LM10500 - 5A Step-Down EMU

Full PDF Text Transcription

Click to expand full text
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community LM10011 SNVS822A – DECEMBER 2012 – REVISED NOVEMBER 2014 LM10011 6/4-Bit VID Programmable Current DAC for Point of Load Regulators with Adjustable Start-Up Current 1 Features •1 1.0% Output Current Accuracy (0°C to 100°C) • 1.25% Output Current Accuracy (–40°C to 125°C) • Input Voltage Range: 2.97 V to 5.5 V • Pin Selectable VID Format (6- or 4-bit) • 16 Selectable Start-Up Currents • Precision Enable to Support Custom UVLO • SON-10 3-mm × 3-mm Footprint, 0.
