SM2200AF, SM2150AF Datasheet - Leshan Radio Company

SM2200AF, SM2150AF, Schottky Barrier Rectifiers

SM2150AF thru SM2200AF Schottky Barrier Rectifiers Reverse Voltage 150 & 200V Forward Current 2.0A .

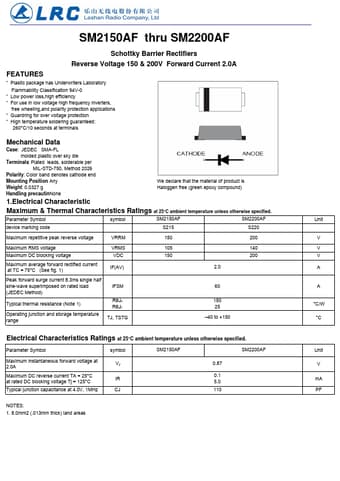

datasheet Preview Page 1 from Datasheet4u.com

SM2150AF-LeshanRadioCompany.pdf

SM2200AF Datasheet Preview — This datasheet PDF includes multiple part numbers: SM2200AF, SM2150AF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SM2200AF, SM2150AF

Manufacturer:

Leshan Radio Company

File Size:

214.74 KB

Description:

Schottky Barrier Rectifiers

Note:

This datasheet PDF includes multiple part numbers: SM2200AF, SM2150AF.
Please refer to the document for exact specifications by model.

Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-0
* Low power loss,high efficiency

Applications

* Guardring for over voltage protection
* High temperature soldering guaranteed: 260°C/10 seconds at terminals Mechanical Data Case: JEDEC SMA-FL molded plastic over sky die Terminals: Plated leads, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Mounting Po
