LW5210, LW5208 Datasheet - Lewa Micro

LW5210, LW5208, 500mA High PSRR LDO

LW52XX Series 500mA High PSRR LDO With Fast-Start GENERAL .
The LW52XX Series is a group of voltage regulators with high accuracy, high speed, low drop-out, high ripple rejection and fast discharge function.

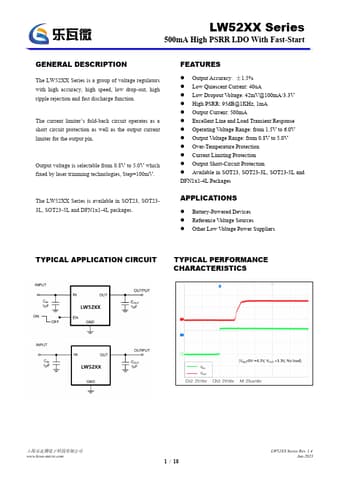

 datasheet Preview Page 1 from Datasheet4u.com

LW5208-LewaMicro.pdf

This datasheet PDF includes multiple part numbers: LW5210, LW5208. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LW5210, LW5208

Manufacturer:

Lewa Micro

File Size:

1.91 MB

Description:

500mA High PSRR LDO

Note:

This datasheet PDF includes multiple part numbers: LW5210, LW5208.
Please refer to the document for exact specifications by model.

Features

* Output Accuracy: ±1.5%
* Low Quiescent Current: 40uA
* Low Dropout Voltage: 42mV@100mA/3.3V
* High PSRR: 95dB@1KHz, 1mA
* Output Current: 500mA
* Excellent Line and Load Transient Response
* Operating Voltage Range: from 1.5V to 6.0V
* Output Voltage Range: from 0.8

Applications

* Battery-Powered Devices
* Reference Voltage Sources
