LW5212 Datasheet - Lewa Micro

500mA High PSRR LDO

LW5212 Features

* Output Accuracy: ±1.5%

* Low Quiescent Current: 40uA

* Low Dropout Voltage: 42mV@100mA/3.3V

* High PSRR: 95dB@1KHz, 1mA

* Output Current: 500mA

* Excellent Line and Load Transient Response

* Operating Voltage Range: from 1.5V to 6.0V

* Output Voltage Range: from 0.8

LW5212 General Description

The LW52XX Series is a group of voltage regulators with high accuracy, high speed, low drop-out, high ripple rejection and fast discharge function. The current limiter’s fold-back circuit operates as a short circuit protection as well as the output current limiter for the output pin. Output voltage .

LW5212 Datasheet (1.91 MB)

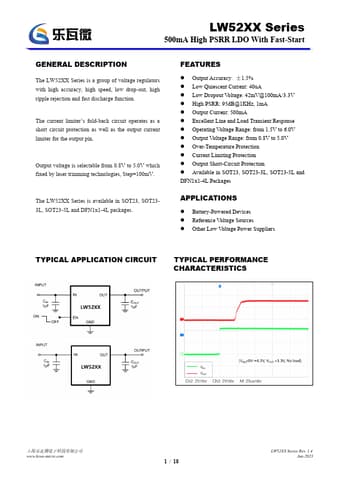

LW5212 Datasheet Preview — Preview of LW5212 PDF

Datasheet Details

Part number:

LW5212

Manufacturer:

Lewa Micro

File Size:

1.91 MB

Description:

500ma high psrr ldo.
