LW540 Datasheet - Seoul Semiconductor

LW540 - LED Lamp

Bin Code Luminous Intensity P CIE c Forward Voltage 4 LW540 Luminous Intensity (mcd) @ IF = 20mA Bin Code O P Q R Min.

2500 3500 5000 7000 Max.

3500 5000 7000 10000 Color Rank @ IF = 20mA a b c d Forward Voltage (V) @ IF = 20mA Bin Code 1 2 3 4 5 6 Min.

2.6 2.8 3.0 3.2 3.4 3.6 Max.

2.8 3.0 3.2 3

LW540 Features

* High luminous white emission

* Non-standoff leads

* 5mm package

* Viewing angle : 40 º

* Color Coordinates : x=0.31 y=0.31 Applications

* Electronic signs and signals

* Specialty lighting

* Small area illumination

* Torches a

LW540_SeoulSemiconductor.pdf

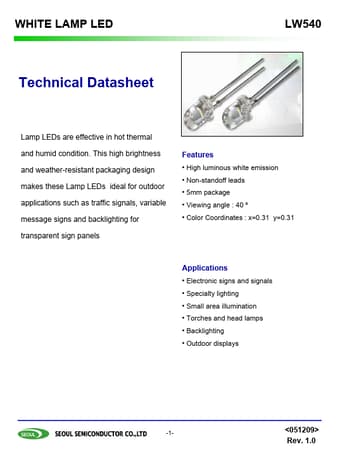

Preview of LW540 PDF
LW540 Datasheet Preview Page 2 LW540 Datasheet Preview Page 3

Datasheet Details

Part number:

LW540

Manufacturer:

Seoul Semiconductor

File Size:

620.34 KB

Description:

Led lamp.
