LA8517JG, LA8517 Datasheet - Linear Artwork

LA8517JG 3A/23V Step-Down DC-DC Converter

LA8517 is a voltage mode, step-down DC-DC converter that is designed to meet 3A output current, and utilizes PWM control scheme that switches with 300KHz fixed frequency. The input voltage range of LA8517 is from 3.6V to 23V, and available in adjustable output voltage from 0.8V to VIN. The supply cu.

LA8517JG Features

* of current limit, thermal shutdown protection, and short circuit protection are also included. Due to the low RDS(ON) of the internal power MOSFET, this device provides high efficiency step-down applications. It can also operate with a maximum duty cycle of 100% for use in low drop-out conditions. T

LA8517-LinearArtwork.pdf

This datasheet PDF includes multiple part numbers: LA8517JG, LA8517. Please refer to the document for exact specifications by model.

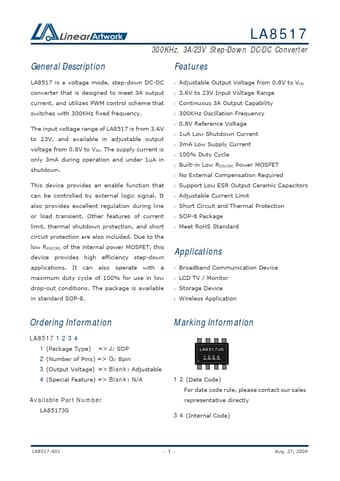

LA8517JG Datasheet Preview Page 2 LA8517JG Datasheet Preview Page 3

Datasheet Details

Part number:

LA8517JG, LA8517

Manufacturer:

Linear Artwork

File Size:

769.34 KB

Description:

3a/23v step-down dc-dc converter.

Note:

This datasheet PDF includes multiple part numbers: LA8517JG, LA8517.
Please refer to the document for exact specifications by model.
