LA8533A, LA8533 Datasheet - Linear Artwork

LA8533A 3A/21V Step-Down DC-DC Converter

LA8533A Features

* LA8533/A is a current mode, step-down DC-DC converter that is designed to meet 3A output current, and utilizes PWM control scheme that switches with 1.4MHz fixed frequency. The input voltage range of LA8533/A is from 4.5V to 21V, and available in adjustable output voltage from 0.8V to VIN. The supp

LA8533-LinearArtwork.pdf

This datasheet PDF includes multiple part numbers: LA8533A, LA8533. Please refer to the document for exact specifications by model.

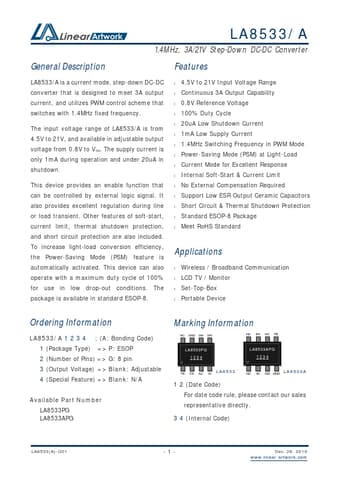

LA8533A Datasheet Preview Page 2 LA8533A Datasheet Preview Page 3

Datasheet Details

Part number:

LA8533A, LA8533

Manufacturer:

Linear Artwork

File Size:

705.81 KB

Description:

3a/21v step-down dc-dc converter.

Note:

This datasheet PDF includes multiple part numbers: LA8533A, LA8533.
Please refer to the document for exact specifications by model.
