LTC2462, LTC2460 Datasheet - Linear Technology Corporation

LTC2462 ADCs

The LTC®2460/LTC2462 are ultra tiny, 16-Bit analog-todigital converters with an integrated precision reference. They use a single 2.7V to 5.5V supply and communicate through an SPI Interface. The LTC2460 is single-ended with a 0V to VREF input range and the LTC2462 is differential with a ±VREF input.

LTC2462 Features

* n 16-Bit Resolution, No Missing Codes n Internal Reference, High Accuracy 10ppm/°C (Max) n Single-Ended (LTC2460) or Differential (LTC2462) n 2LSB Offset Error n 0.01% Gain Error n 60 Conversions Per Second n Single Conversion Settling Time for Multiplexed Applications n Single-Cycle Operati

LTC2460_LinearTechnologyCorporation.pdf

This datasheet PDF includes multiple part numbers: LTC2462, LTC2460. Please refer to the document for exact specifications by model.

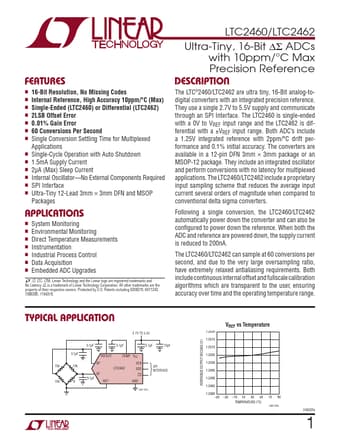

LTC2462 Datasheet Preview Page 2 LTC2462 Datasheet Preview Page 3

Datasheet Details

Part number:

LTC2462, LTC2460

Manufacturer:

Linear Technology Corporation

File Size:

309.23 KB

Description:

Adcs.

Note:

This datasheet PDF includes multiple part numbers: LTC2462, LTC2460.
Please refer to the document for exact specifications by model.
