LTC2410

24-Bit No Latency ADC

LTC2410 Features

* nn Differential Input and Differential Reference with GND to VCC Common Mode Range nn 2ppm INL, No Missing Codes nn 2.5ppm Full-Scale Error nn 0.1ppm Offset nn 0.16ppm Noise nn Single Conversion Settling Time for Multiplexed Applications nn Internal Oscillator

* No External Components Required

LTC2410 General Description

The LTC®2410 is a 2.7V to 5.5V micropower 24-bit differential ∆Σ analog to digital converter with an integrated oscillator, 2ppm INL and 0.16.

LTC2410 Datasheet (908.48 KB)

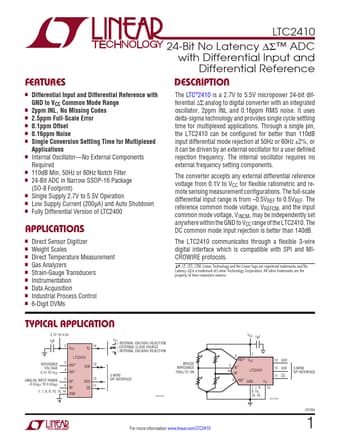

Preview of LTC2410 PDF

Datasheet Details

Part number:

LTC2410

Manufacturer:

Linear Technology

File Size:

908.48 KB

Description:

24-bit no latency adc.
