LTC2412

2-Channel Differential Input 24-Bit No Latency ADC

Linear Technology

LTC2412 Features

* nn 2-Channel Differential Input with Automatic Channel Selection (Ping-Pong) nn Low Supply Current: 200µA, 4µA in Autosleep nn Differential Input and Differential Reference with GND to VCC Common Mode Range nn 2ppm INL, No Missing Codes nn 2.5ppm Full-Scale Error and 0.1ppm Offset nn 0.16ppm Noise,

LTC2412 General Description

The LTC®2412 is a 2-channel differential input micropower 24-bit No Latency ∆Σ™ analog-to-digital converter with an integrated oscillator. It provides 2ppm INL and 0.16ppm RMS noise over the entire supply range. The two differential channels are converted alternately with channel ID included in the .

LTC2412 Datasheet (553.44 KB)

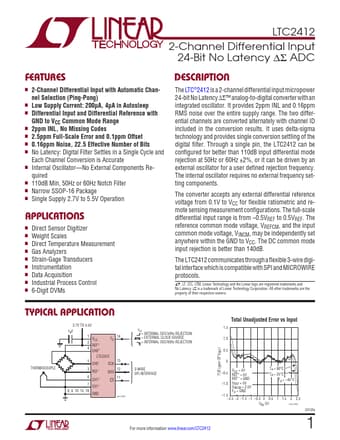

LTC2412 Datasheet Preview — Preview of LTC2412 PDF

Datasheet Details

Part number:

LTC2412

Manufacturer:

Linear Technology

File Size:

553.44 KB

Description:

2-channel differential input 24-bit no latency adc.
