LTC2411-1

24-Bit No Latency ADC

LTC2411-1 Features

* 24-Bit No Latency ∆Σ™ ADC with Differential Input and Reference in MSOP DESCRIPTION nn 24-Bit ADC in an MS10 Package nn Low Supply Current (200µA in Conversion Mode and 4µA in Autosleep Mode) nn Differential Input and Differential Reference with GND to VCC Common Mode Range nn 2ppm INL, No Missing

LTC2411-1 General Description

nn 24-Bit ADC in an MS10 Package nn Low Supply Current (200µA in Conversion Mode and 4µA in Autosleep Mode) nn Differential Input and Differential Reference with GND to VCC Common Mode Range nn 2ppm INL, No Missing Codes nn 4ppm Full-Scale Error and 1ppm Offset nn 0.29ppm Noise nn No Latency: Digit.

LTC2411-1 Datasheet (721.40 KB)

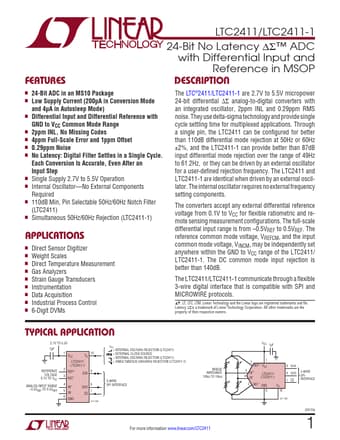

Preview of LTC2411-1 PDF

Datasheet Details

Part number:

LTC2411-1

Manufacturer:

Linear Technology

File Size:

721.40 KB

Description:

24-bit no latency adc.
