LT1011 Voltage Comparator

📥 Download Datasheet  Datasheet Preview Page 1

Description

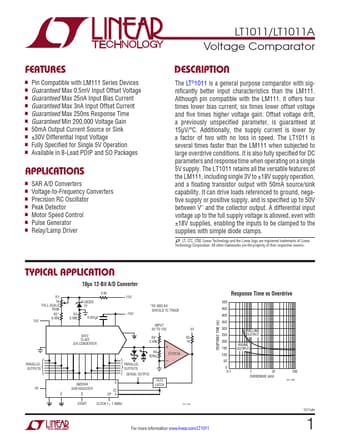

LT1011/LT1011A Voltage Comparator U Response Time vs Overdrive 500 450 16 17 19 6012 12-BIT D/A CONVERTER INPUT 0V TO 10V R4 * 2.49k R6 820Ω PARALL.

📥 Download Datasheet

Preview of LT1011 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
LT1011
Manufacturer
Linear Technology
File Size
273.07 KB
Datasheet
LT1011_LinearTechnology.pdf
Description
Voltage Comparator

Features

* s s s s s s s s s DESCRIPTIO Pin Compatible with LM111 Series Devices Guaranteed Max 0.5mV Input Offset Voltage Guaranteed Max 25nA Input Bias Current Guaranteed Max 3nA Input Offset Current Guaranteed Max 250ns Response Time Guaranteed Min 200,000 Voltage Gain 50mA Output Current Source or Sink ±
