LT1012 Datasheet - Linear Technology

LT1012, Picoamp Input Current / Microvolt Offset / Low Noise Op Amp

LT1012A/LT1012 Picoamp Input Current, Microvolt Offset, Low Noise Op Amp DESCRIPTIO The LT ®1012 is an internally compensated universal precision oper.

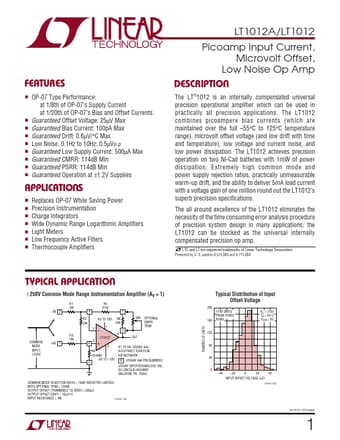

datasheet Preview Page 1 from Datasheet4u.com

LT1012_LinearTechnology.pdf

LT1012 Datasheet Preview — Preview of LT1012 PDF

Datasheet Details

Part number:

LT1012

Manufacturer:

Linear Technology

File Size:

332.12 KB

Description:

Picoamp Input Current / Microvolt Offset / Low Noise Op Amp

Features

* s s s s s s s s s U APPLICATIO S s s s s s s s OP-07 Type Performance: at 1/8th of OP-07’s Supply Current at 1/20th of OP-07’s Bias and Offset Currents Guaranteed Offset Voltage: 25µV Max Guaranteed Bias Current: 100pA Max Guaranteed Drift: 0.6µV/°C Max Low Noise, 0.1Hz to 10Hz: 0.5µVP-P Guarante

Applications

* The LT1012 combines picoampere bias currents (which are maintained over the full
* 55°C to 125°C temperature range), microvolt offset voltage (and low drift with time and temperature), low voltage and current noise, and low power dissipation. The LT1012 achieves precision operation on two Ni
