LT1013M, LT1013, Dual Precision Operational Amplifier

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community LT1013, LT1013D, LT1013M, LT1013AM SLOS018I * MAY 19.
The LT1013x devices are dual precision operational amplifiers, featuring high gain, low supply current, low noise, and low-offset-voltage temperature.

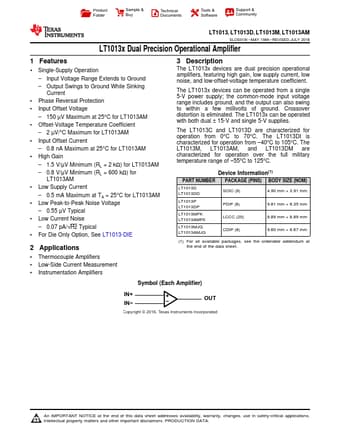

datasheet Preview Page 1 from Datasheet4u.com

LT1013-etcTI.pdf

LT1013M Datasheet Preview — This datasheet PDF includes multiple part numbers: LT1013M, LT1013. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LT1013M, LT1013

Manufacturer:

Texas Instruments ↗

File Size:

1.58 MB

Description:

Dual Precision Operational Amplifier

Note:

This datasheet PDF includes multiple part numbers: LT1013M, LT1013.
Please refer to the document for exact specifications by model.

Features

* 1 Single-Supply Operation
* Input Voltage Range Extends to Ground
* Output Swings to Ground While Sinking Current
* Phase Reversal Protection
* Input Offset Voltage
* 150 µV Maximum at 25°C for LT1013AM
* Offset-Voltage Temperature Coefficient

Applications

* Thermocouple Amplifiers
* Low-Side Current Measurement
