LT1630 - 30MHz/ 10V/us/ Dual/Quad Rail-to-Rail Input and Output Precision Op Amps

This page provides the datasheet information for the LT1630, a member of the LT1 30MHz/ 10V/us/ Dual/Quad Rail-to-Rail Input and Output Precision Op Amps family.

Datasheet Summary

Description

The LT ®1630/LT1631 are dual/quad, rail-to-rail input and output op amps with a 30MHz gain-bandwidth product and a 10V/µs slew rate.

The LT1630/LT1631 have excellent DC precision over the full range of operation.

Features

s s s s s s s s s s s s s s s.

Linear Technology

📥 Download Datasheet

Datasheet Details

Part number	LT1630
Manufacturer	Linear Technology
File Size	356.69 KB
Description	30MHz/ 10V/us/ Dual/Quad Rail-to-Rail Input and Output Precision Op Amps
Datasheet	LT1630 Datasheet
Additional preview pages of the LT1630 datasheet.

📁 Similar Datasheet

LT1640AH - Negative Voltage Hot Swap Controller (Linear)
LT1640AL - Negative Voltage Hot Swap Controller (Linear)
LT1681 - Dual Transistor Synchronous Forward Controller (Linear)
LT10.52MJA10-A - Ceramic Filter (RELM)
LT10.7 - Ceramic Filter (YUKUTO)
LT10.7M - Ceramic Filters (Token)
LT10.7M - Ceramic Filter (VANLONG)
LT10.7MA19 - CERAMIC FILTER (Yantai Cn Electronics)
LT10.7MA19 - Ceramic Resonators (Fortiming)
LT10.7MA19 - Ceramic Filter and Discriminator (Chequers Electronic)

Other Datasheets by Linear Technology

LT1631 - 30MHz/ 10V/us/ Dual/Quad Rail-to-Rail Input and Output Precision Op Amps
LT1632 - 45MHz/ 45V/us/ Dual/Quad Rail-to-Rail Input and Output Precision Op Amps
LT1633 - 45MHz/ 45V/us/ Dual/Quad Rail-to-Rail Input and Output Precision Op Amps
LT1634 - Micropower Precision Shunt Voltage Reference
LT1635 - Micropower Rail-to-Rail Op Amp and Reference
LT1636 - Over-The-Top Micropower Rail-to-Rail Input and Output Op Amp
LT1637 - 1.1MHz/ 0.4V/us Over-The-Top Micropower/ Rail-To-Rail Input and Output Op Amp
LT1638 - 1.2MHz/ 0.4V/us Over-The-TopTM Micropower Rail-to-Rail Input and Output Op Amps

Full PDF Text Transcription

Click to expand full text

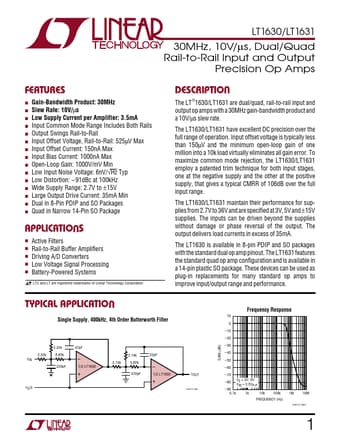

LT1630/LT1631 30MHz, 10V/µs, Dual/Quad Rail-to-Rail Input and Output Precision Op Amps FEATURES s s s s s s s s s s s s s s s DESCRIPTION The LT ®1630/LT1631 are dual/quad, rail-to-rail input and output op amps with a 30MHz gain-bandwidth product and a 10V/µs slew rate. The LT1630/LT1631 have excellent DC precision over the full range of operation. Input offset voltage is typically less than 150µV and the minimum open-loop gain of one million into a 10k load virtually eliminates all gain error. To maximize common mode rejection, the LT1630/LT1631 employ a patented trim technique for both input stages, one at the negative supply and the other at the positive supply, that gives a typical CMRR of 106dB over the full input range.
