LT1671 - 60ns/ Low Power/ Single Supply/ Ground-Sensing Comparator

LT1671 Description

LT1671 60ns, Low Power, Single Supply, Ground-Sensing Comparator .

LT1671 Features

* s s DESCRIPTIO s s s s s s s s s Low Power: 450µA Fast: 60ns at 20mV Overdrive 85ns at 5mV Overdrive Low Offset Voltage: 0.8mV Operates Off Single 5V or Dual ± 5V Supplies Input Common Mode Extends to Negative Supply No Minimum Input Slew Rate Requirement Complementary TTL Outputs Inputs Can Exce

LT1671 Applications

* The LT1671 is designed for improved speed and stability for a wide range of operating conditions. The output stage provides active drive in both directions for maximum speed into TTL, CMOS or passive loads with minimal cross-conduction current. Unlike other fast comparators, the LT1671 remains stab

📥 Download Datasheet

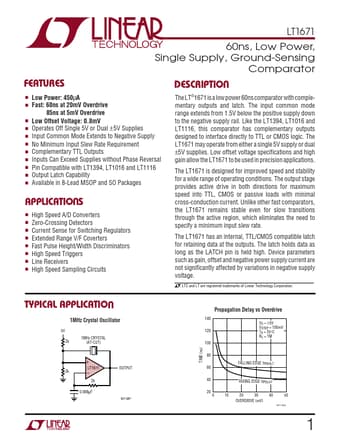

Preview of LT1671 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LT1671
Manufacturer
Linear Technology
File Size
199.68 KB
Datasheet
LT1671_LinearTechnology.pdf
Description
60ns/ Low Power/ Single Supply/ Ground-Sensing Comparator
