LT1675, LT1 - 250MHz/ Triple and Single RGB Multiplexer with Current Feedback Amplifiers

LT1675 Description

LT1675/LT1675-1 250MHz, Triple and Single RGB Multiplexer with Amplifiers .

LT1675 Features

* 100MHz Pixel Switching
* 3dB Bandwidth: 250MHz
* Channel Switching Time: 2.5ns
* Expandable to Larger Arrays
* Drives Cables Directly
* High Slew Rate: 1100V/µs
* Low Switching Transient: 50mV
* Shutdown Supply Current: 100µA
* Output Short-Circuit Pro

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LT1675, LT1. Please refer to the document for exact specifications by model.

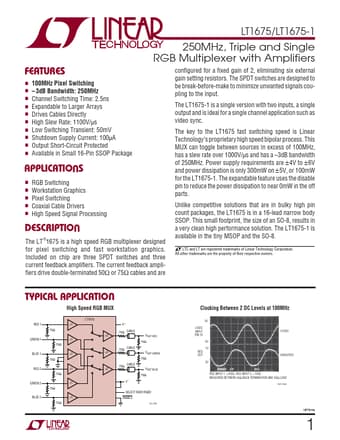

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LT1675, LT1
Manufacturer
Linear Technology
File Size
750.08 KB
Datasheet
LT1-675.pdf
Description
250MHz/ Triple and Single RGB Multiplexer with Current Feedback Amplifiers
Note
This datasheet PDF includes multiple part numbers: LT1675, LT1.
Please refer to the document for exact specifications by model.
