LT1765-5 Datasheet - Linear Technology

1.25MHz Step-Down Switching Regulator

LT1765-5 Features

* n 3A Switch in a Thermally Enhanced 16-Lead TSSOP or 8-Lead SO Package n Constant 1.25MHz Switching Frequency n Wide Operating Voltage Range: 3V to 25V n High Efﬁciency 0.09Ω Switch n 1.2V Feedback Reference Voltage n Uses Low Proﬁle Surface Mount Components n Low Shutdown Current: 15μA n Synchroniz

LT1765-5 General Description

The LT®1765 is a 1.25MHz monolithic buck switching regulator. A high efﬁciency 3A, 0.09Ω switch is included on the die together with all the control circuitry required to construct a high frequency, current mode switching regulator. Current mode control provides fast tran.

LT1765-5 Datasheet (203.12 KB)

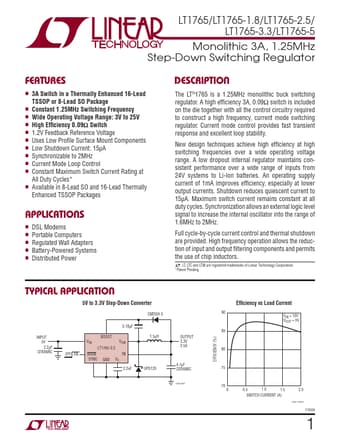

LT1765-5 Datasheet Preview — Preview of LT1765-5 PDF

Datasheet Details

Part number:

LT1765-5

Manufacturer:

Linear Technology

File Size:

203.12 KB

Description:

1.25mhz step-down switching regulator.
