LTC1474, LTC - Low Quiescent Current High Efficiency Step-Down Converters

Name: LTC1474
SKU: LTC1474-189737

Linear Technology

📥 Download Datasheet

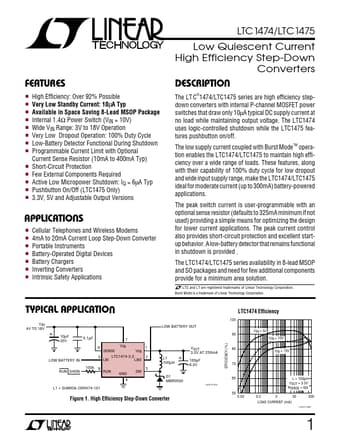

LTC1474 Datasheet Preview — This datasheet PDF includes multiple part numbers: LTC1474, LTC. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	LTC1474, LTC
Manufacturer	Linear Technology
File Size	350.52 KB
Description	Low Quiescent Current High Efficiency Step-Down Converters
Datasheet	LTC-1474.pdf
Note	This datasheet PDF includes multiple part numbers: LTC1474, LTC. Please refer to the document for exact specifications by model.

LTC1474 Product details

Description

The LT C®1474/LTC1475 series are high efficiency stepdown converters with internal P-channel MOSFET power switches that draw only 10µA typical DC supply current at no load while maintaining output voltage.

Features

pushbutton on/off. The low supply current coupled with Burst ModeTM operation enables the LTC1474/LTC1475 to maintain high efficiency over a wide range of loads. These features, along with their capability of 100% duty cycle for low dropout and wide input supply range, make the LTC1474/LTC1475 ideal for moderate current (up to 300mA) battery-powered.
