LTC1518 - 52Mbps Precision Delay RS485 Quad Line Receivers

Name: LTC1518
SKU: LTC1518-189856

Linear Technology

The LTC1518 by Linear Technology is a 52Mbps Precision Delay RS485 Quad Line Receivers. Below is the official datasheet preview.

Datasheet Details

Part number	LTC1518
Manufacturer	Linear Technology
File Size	165.63 KB
Description	52Mbps Precision Delay RS485 Quad Line Receivers
Datasheet	LTC1518_LinearTechnology.pdf

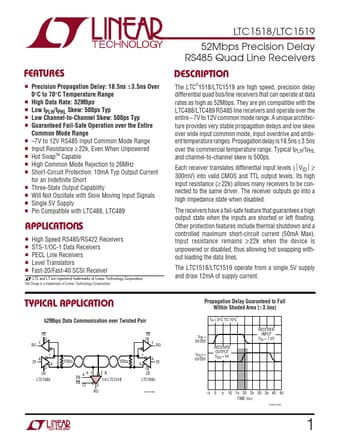

Additional preview pages of the LTC1518 datasheet.

s Precision Propagation Delay: 18.5ns ±3.5ns Over 0°C to 70°C Temperature Range s High Data Rate: 52Mbps s Low tPLH/tPHL Skew: 500ps Typ s Low Channel-to-Channel Skew: 500ps Typ s Guaranteed Fail-Safe Operation over the Entire Common Mode Range s.
7V to 12V RS485 Input Common Mode Range s Input Resistance ≥ 22k, Even When Unpowered s Hot SwapTM Capable s High Common Mode Rejection to 26MHz s Short-Circuit Protection: 10mA Typ Output Current for an Indefinite Short s Three-State Output Ca.
