LTC1592

12-/14-/16-Bit SoftSpan DACs

LTC1592 Features

* s Six Programmable Output Ranges Unipolar Mode: 0V to 5V, 0V to 10V Bipolar Mode: ±5V, ±10V, ±2.5V,

* 2.5V to 7.5V s 1LSB Max DNL and INL Over the Industrial Temperature Range s Glitch Impulse < 2nV-s s 16-Lead SSOP Package s Power-On Reset to 0V s Asynchronous Clear to 0V for All Ranges U A

LTC1592 Datasheet (276.54 KB)

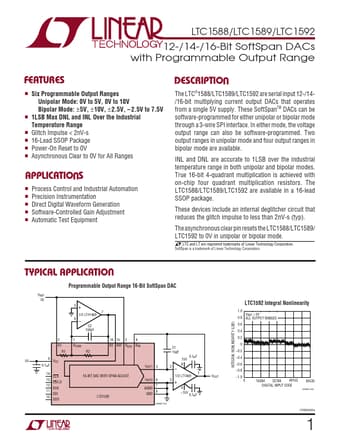

Preview of LTC1592 PDF

Datasheet Details

Part number:

LTC1592

Manufacturer:

Linear

File Size:

276.54 KB

Description:

12-/14-/16-bit softspan dacs.
