LTC1591

14-Bit and 16-Bit Parallel Low Glitch Multiplying DACs

LTC1591 Features

* 14-Bit and 16-Bit Parallel Low Glitch Multiplying DACs with 4-Quadrant Resistors Description nn True 16-Bit Performance Over Industrial Temperature Range nn DNL and INL: 1LSB Max nn On-Chip 4-Quadrant Resistors Allow Precise 0V to 10V, 0V to

* 10V or ±10V Outputs nn Pin Compatible 14- and 1

LTC1591 General Description

nn True 16-Bit Performance Over Industrial Temperature Range nn DNL and INL: 1LSB Max nn On-Chip 4-Quadrant Resistors Allow Precise 0V to 10V, 0V to

*10V or ±10V Outputs nn Pin Compatible 14- and 16-Bit Parts nn Asynchronous Clear Pin nn LTC1591/LTC1597: Reset to Zero Scale nn LTC1591-1/LTC.

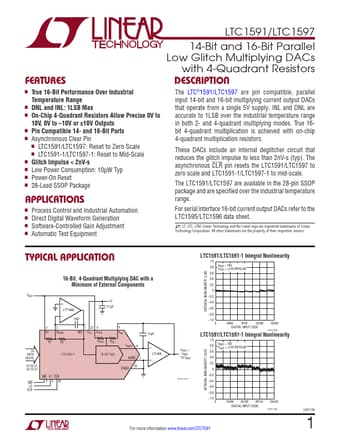

LTC1591 Datasheet (500.97 KB)

Preview of LTC1591 PDF

Datasheet Details

Part number:

LTC1591

Manufacturer:

Linear Technology

File Size:

500.97 KB

Description:

14-bit and 16-bit parallel low glitch multiplying dacs.
