LTC1594

4- and 8-Channel/ Micropower Sampling 12-Bit Serial I/O A/D Converters

LTC1594 Features

* 12-Bit Resolution

* Auto Shutdown to 1nA

* Low Supply Current: 320μA Typ

* Guaranteed ±3/4LSB Max DNL

* Single Supply 5V Operation (3V Versions Available: LTC1594L/LTC1598L)

* Multiplexer: 4-Channel MUX (LTC1594) 8-Channel MUX (LTC1598)

* Separate MUX Output and ADC Inp

LTC1594 Datasheet (230.47 KB)

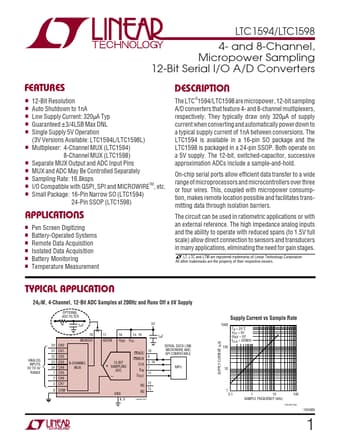

Preview of LTC1594 PDF

Datasheet Details

Part number:

LTC1594

Manufacturer:

Linear Technology

File Size:

230.47 KB

Description:

4- and 8-channel/ micropower sampling 12-bit serial i/o a/d converters.
