LTC1594L 4- and 8-Channel/ 3V Micropower Sampling 12-Bit Serial I/O A/D Converters

LTC1594L Description

U U LTC1594L/LTC1598L 4- and 8-Channel, 3V Micropower Sampling 12-Bit Serial I/O A/D Converters .

LTC1594L Features

* s 12-Bit Resolution on 3V Supply s Low Supply Current: 160µA Typ s Auto Shutdown to 1nA s Guaranteed ±3/4LSB Max DNL s Guaranteed 2.7V Operation (5V Versions Available: LTC1594/LTC1598) s Multiplexer: 4-Channel MUX (LTC1594L) 8-Channel MUX (LTC1598L) s Separate MUX Output and ADC Input Pins s MUX an

LTC1594L Applications

* or with an external reference. The high impedance analog inputs and the ability to operate with reduced spans (to 1.5V full scale) allow direct connection to sensors and transducers in many applications, eliminating the need for gain stages. , LTC and LT are registered trademarks of Linear Technolog

📥 Download Datasheet

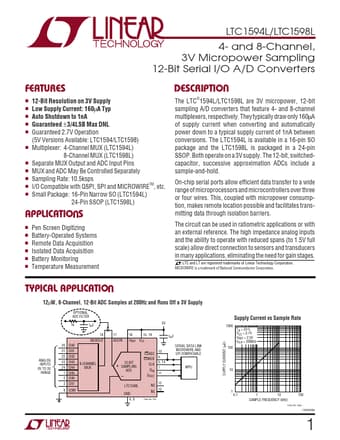

Preview of LTC1594L PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LTC1594L
Manufacturer
Linear Technology
File Size
361.24 KB
Datasheet
LTC1594L_LinearTechnology.pdf
Description
4- and 8-Channel/ 3V Micropower Sampling 12-Bit Serial I/O A/D Converters
