LTC1928-5 - Doubler Charge Pump

Linear Technology

LTC1928-5 Description

LTC1928-5 Doubler Charge Pump with Low Noise Linear Regulator in ThinSOT .

LTC1928-5 Features

* s s s s s s s s s s s DESCRIPTIO U APPLICATIO S s s s s s s s s Low Output Noise: 90µVRMS (100kHz BW) Fixed Output Voltage: 5V Input Voltage Range: 2.7V to 4.4V No Inductors Required Uses Small Ceramic Capacitors Output Current Up to 30mA 550kHz Switching Frequency Low Operating Current: 190µA Lo

LTC1928-5 Applications

* An internal charge pump converts a 2.7V to 4.4V input to a boosted output, while the internal LDO regulator converts the boosted voltage to a low noise regulated output. The regulator is capable of supplying up to 30mA of output current. Shutdown reduces the supply current to < 8µA, removes the loa

📥 Download Datasheet

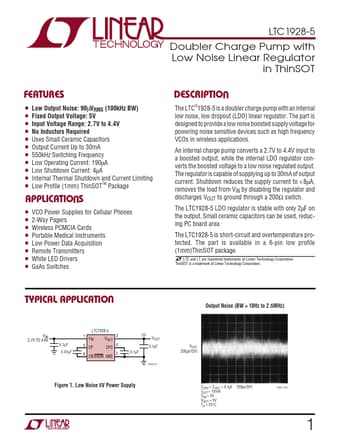

LTC1928-5 Datasheet Preview — Preview of LTC1928-5 PDF

Datasheet Details

Part number: LTC1928-5
Manufacturer: Linear Technology
File Size: 157.76 KB
Datasheet: LTC1928-5_LinearTechnology.pdf
Description: Doubler Charge Pump
