LTC2950-1 Datasheet - Linear Technology

Push Button On/Off Controller

LTC2950-1 Features

* Adjustable Push Button On/Off Timers

* Low Supply Current: 6μA

* Wide Operating Voltage Range: 2.7V to 26V

* EN Output (LTC2950-1) Allows DC/DC Converter Control

* EN Output (LTC2950-2) Allows Circuit Breaker www.DataSheet4U.com Control

* Simple Interface Allows Graceful μP Shut

LTC2950-1 General Description

The LTC®2950 is a micropower, wide input voltage range, push button ON/OFF controller. The part contains a push button input with independently programmable ON and OFF debounce times that control the toggling of an open drain enable output. The part also contains a simple microprocessor interface to.

LTC2950-1 Datasheet (459.92 KB)

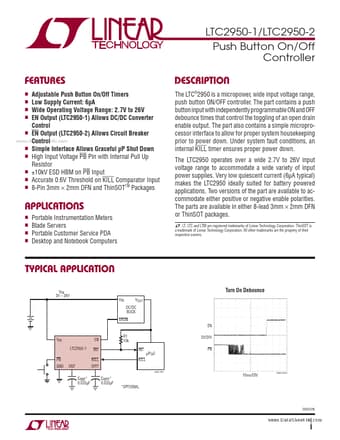

Preview of LTC2950-1 PDF

Datasheet Details

Part number:

LTC2950-1

Manufacturer:

Linear Technology

File Size:

459.92 KB

Description:

Push button on/off controller.
