LTC2950-2 Push Button On/Off Controller

The LTC®2950 is a micropower, wide input voltage range, push button ON/OFF controller. The part contains a push button input with independently programmable ON and OFF debounce times that control the toggling of an open drain enable output. The part also contains a simple microprocessor interface to.

LTC2950-2 Features

* Adjustable Push Button On/Off Timers

* Low Supply Current: 6μA

* Wide Operating Voltage Range: 2.7V to 26V

* EN Output (LTC2950-1) Allows DC/DC Converter Control

* EN Output (LTC2950-2) Allows Circuit Breaker www.DataSheet4U.com Control

* Simple Interface Allows Graceful μP Shut

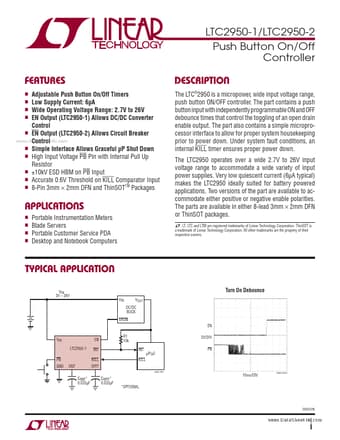

LTC2950-1_LinearTechnology.pdf

LTC2950-2 Datasheet Preview — This datasheet PDF includes multiple part numbers: LTC2950-2, LTC2950-1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LTC2950-2, LTC2950-1

Manufacturer:

Linear Technology

File Size:

459.92 KB

Description:

Push button on/off controller.

Note:

This datasheet PDF includes multiple part numbers: LTC2950-2, LTC2950-1.
Please refer to the document for exact specifications by model.
