LTC3675 - 7-Channel Configurable High Power PMIC

Name: LTC3675
SKU: LTC3675-684836

Linear Technology

📥 Download Datasheet

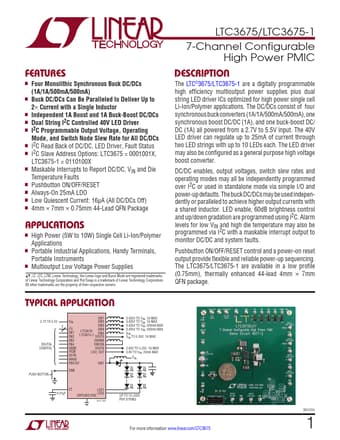

LTC3675 Datasheet Preview — Preview of LTC3675 PDF

Datasheet Details

Part number	LTC3675
Manufacturer	Linear Technology
File Size	579.59 KB
Description	7-Channel Configurable High Power PMIC
Datasheet	LTC3675_LinearTechnology.pdf

LTC3675 Product details

Description

The LTC®3675/LTC3675-1 are a digitally programmable high efficiency multioutput power supplies plus dual string LED driver ICs optimized for high power single cell Li-Ion/Polymer applications.

Features

n Four Monolithic Synchronous Buck DC/DCs (1A/1A/500mA/500mA) n Buck DC/DCs Can Be Paralleled to Deliver Up to 2× Current with a Single Inductor n Independent 1A Boost and 1A Buck-Boost DC/DCs n Dual String I2C Controlled 40V LED Driver n I2C Programmable Output Voltage, Operating Mode, and Switch Node Slew Rate for All DC/DCs n I2C Read Back of DC/DC, LED Driver, Fault Status n I2C Slave Address Options: LTC3675 = 0001001X, LTC3675-1 = 0110100X n Maskable Interrupts to Report DC/DC, VIN and Die.
