LTC3605A

5A Synchronous Step-Down Regulator

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Analog Devices Inc LTC3605AEUF-TRPBF IC REG BUCK ADJ 5A 24QFN DigiKey 6146 250 units
$6.34

LTC3605A Datasheet (394.52 KB)

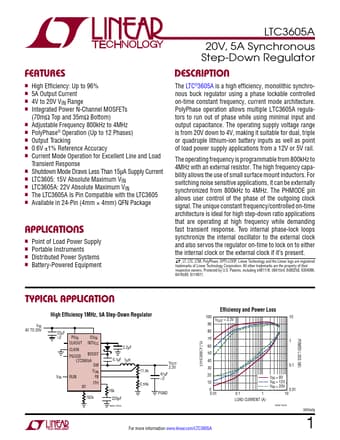

Preview of LTC3605A PDF Datasheet

Datasheet Details

Part number:

LTC3605A

Manufacturer:

Linear

File Size:

394.52 KB

Description:

5a synchronous step-down regulator

LTC3605A Features

* nn High Efficiency: Up to 96% nn 5A Output Current nn 4V to 20V VIN Range nn Integrated Power N-Channel MOSFETs (70mΩ Top and 35mΩ Bottom) nn Adjustable Frequency 800kHz to 4MHz nn PolyPhase® Operation (Up to 12 Phases) nn Output Tracking nn 0.6V ±1% Reference Accuracy nn Current Mode Operation for

LTC3605A General Description

The LTC®3605A is a high efficiency, monolithic synchronous buck regulator using a phase lockable controlled on-time constant frequency, current mode architecture. PolyPhase operation allows multiple LTC3605A regulators to run ou.
