LTC3801 - Micropower Constant Frequency Step-Down DC/DC Controllers

LTC3801 Description

U U LTC3801/LTC3801B Micropower Constant Frequency Step-Down DC/DC Controllers in ThinSOT .

LTC3801 Features

* s High Efficiency: Up to 94% s Very Low No-Load Quiescent Current: Only 16µA (LTC3801) s High Output Currents Easily Achieved s Internal Soft-Start s Wide VIN Range: 2.4V to 9.8V s Low Dropout: 100% Duty Cycle s Constant Frequency 550kHz Operation s Burst Mode® Operation for High Efficiency at Light

LTC3801 Applications

* s Wireless Devices s Portable Computers s Distributed Power Systems DESCRIPTIO The LTC®3801/LTC3801B are constant frequency current mode step-down DC/DC controllers in a low profile (1mm max) 6-lead SOT-23 (ThinSOTTM) package. The parts provide excellent AC and DC load and line regulation with ±1.5

📥 Download Datasheet

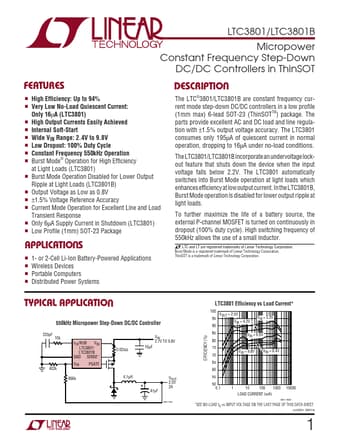

Preview of LTC3801 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LTC3801
Manufacturer
Linear Technology
File Size
237.14 KB
Datasheet
LTC3801_LinearTechnology.pdf
Description
Micropower Constant Frequency Step-Down DC/DC Controllers
