LTC3858

Synchronous Step-Down Controller

Linear Technology

LTC3858 Features

* n Low Operating IQ: 170μA (One Channel On) n Wide Output Voltage Range: 0.8V ≤ VOUT ≤ 24V n Wide VIN Range: 4V to 38V n RSENSE or DCR Current Sensing n Out-of-Phase Controllers Reduce Required Input Capacitance and Power Supply Induced Noise n OPTI-LOOP® Compensation Minimizes COUT n Phase-Lockable

LTC3858 General Description

The LTC®3858 is a high performance dual step-down switching regulator controller that drives all N-channel synchronous power MOSFET stages. A constant frequency current mode architecture allows a phase-lockable frequency of up to 850kHz. Power loss and noise due to the input capacitor ESR are minimi.

LTC3858 Datasheet (424.15 KB)

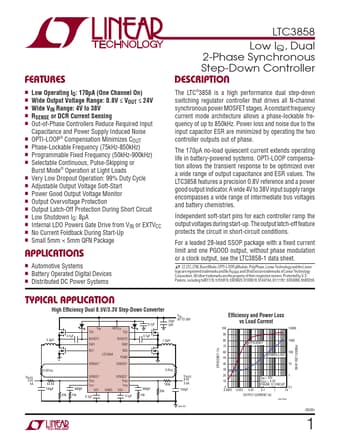

LTC3858 Datasheet Preview — Preview of LTC3858 PDF

Datasheet Details

Part number:

LTC3858

Manufacturer:

Linear Technology

File Size:

424.15 KB

Description:

Synchronous step-down controller.
