LTC6992-2, LTC6992-1 - Voltage-Controlled Pulse Width Modulator

LTC6992-2 Description

.
The LTC®6992 is a silicon oscillator with an easy-to-use analog voltage-controlled pulse width modulation (PWM) capability.

LTC6992-2 Features

* n Pulse Width Modulation (PWM) Controlled by Simple 0V to 1V Analog Input n Four Available Options Define Duty Cycle Limits n Minimum Duty Cycle at 0% or 5% n Maximum Duty Cycle at 95% or 100% n Frequency Range: 3.81Hz to 1MHz n Configured with 1 to 3 Resistors n

LTC6992-2 Applications

* APPLICATIONS n PWM Servo Loops n Heater Control n LED Dimming Control n High Vibration, High Acceleration Environments n Portable and Battery-Powered Equipment All registered trademarks and trademarks are the property of their respective owners. LTC6992-1/LTC6992-2/ LTC6992-3/LTC6992-4 TimerB

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LTC6992-2, LTC6992-1. Please refer to the document for exact specifications by model.

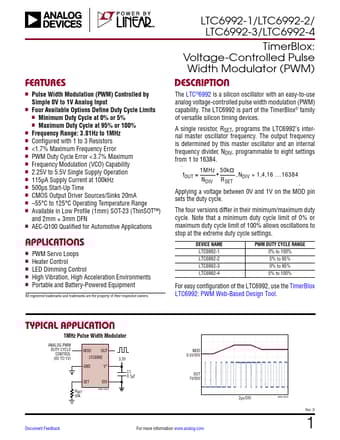

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LTC6992-2, LTC6992-1
Manufacturer
Linear Technology
File Size
1.32 MB
Datasheet
LTC6992-1_LinearTechnology.pdf
Description
Voltage-Controlled Pulse Width Modulator
Note
This datasheet PDF includes multiple part numbers: LTC6992-2, LTC6992-1.
Please refer to the document for exact specifications by model.
